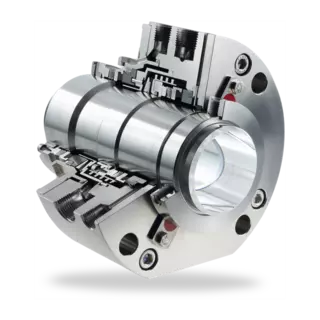

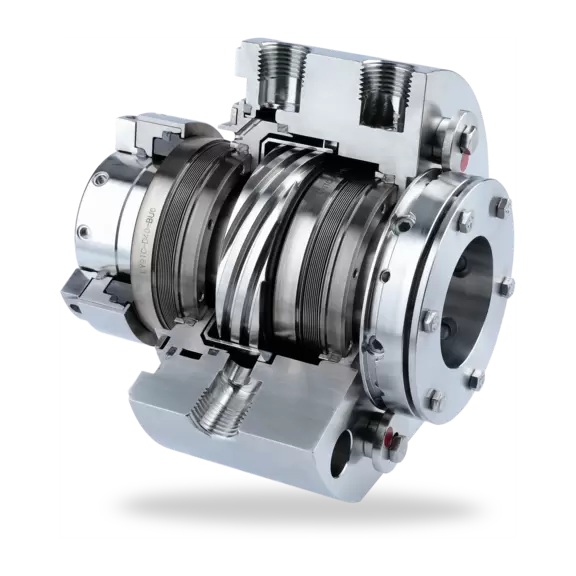

LY9TCR

LY9TCR
Request product

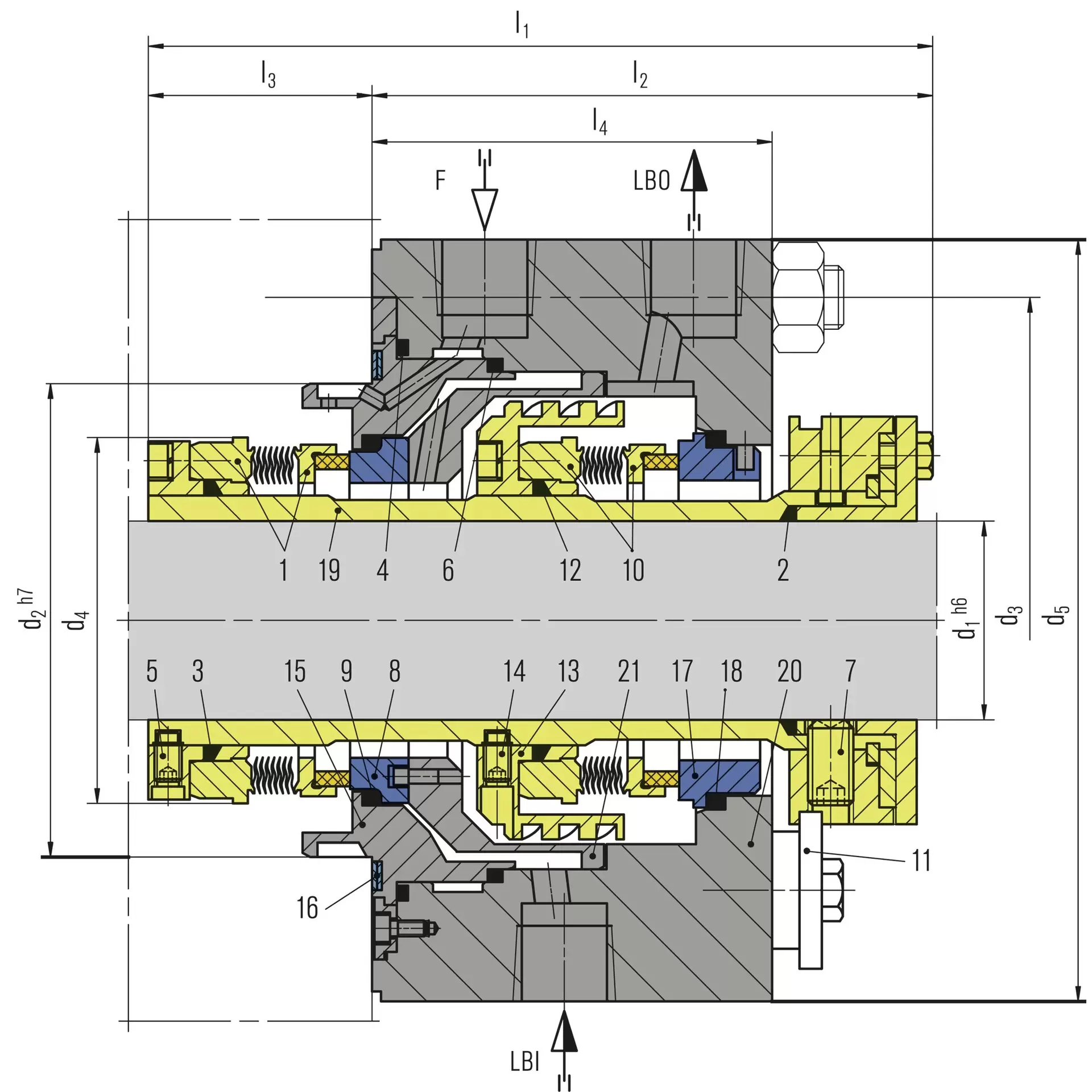

LY9TCR-T
Dual seal
Arrangement: Face-to-back (Tandem),
2CW-CW, 3CW-FB


Item Description
1,10 Seal ring with bellows unit
2, 3, 4, 6, 9, 12, 18 Graphite ring
5, 7, 14 Set screw
8, 17 Mating ring
11 Assembly fixture
13 Driver with pumping screw
15 Adapter
16 Spiral wound gasket
19 Seal sleeve
20 Gland plate
21 Insert


F Flush
LBO Liquid buffer/barrier OUT
LBI Liquid buffer/barrier IN

LY9TCR

Features

  • API 682 Category 2 and 3, Type C seal
  • Balanced
  • Cartridge unit
  • Rotating metal bellows
  • Shrink fitted seal rings and solid mating rings

Advantages

  • Compact design
  • Also available in double ply design
  • Suited for application with extreme high and low temperature
  • Absence of dynamic O-ring eliminates/reduces seal face hang-up
  • Bellows design minimizes variation in face load due to shaft expansion or face wear
  • Resistant to abrasive particles in the medium, no shaft or sleeve fretting

Operating range

Shaft diameter:
d1 = 20 mm … 110 mm (0.79" … 4.33")
Pressure single ply bellows:
p = vacuum … 25 bar* (… 363 PSI*)
Pressure double ply bellows:
p = vacuum … 35 bar (… 508 PSI)
Temperature:
t = -75 °C*… +400 °C (-103 °F* … 752 °F)
Sliding velocity:
vg = … 23 m/s (… 75 ft/s)

* Please contact an EagleBurgmann engineering expert when the operating range of the required seal exceeds the range shown above.

Materials

Seal ring: Blister resistant carbon (C4), RBSiC (Q2)
Mating ring: RBSiC (Q2)
Bellows: Inconel® 718 (M6)
Secondary seal: Graphite (G)
Metal parts: CrNiMo steel 316/316L (G), Carpenter® 42 (T4)

Standards and approvals

  • API 682 / ISO 21049
  • API 682 4th ed. Cat. 2/3
  • Compliant to TA Luft (German Clean Air Act)


Product variants

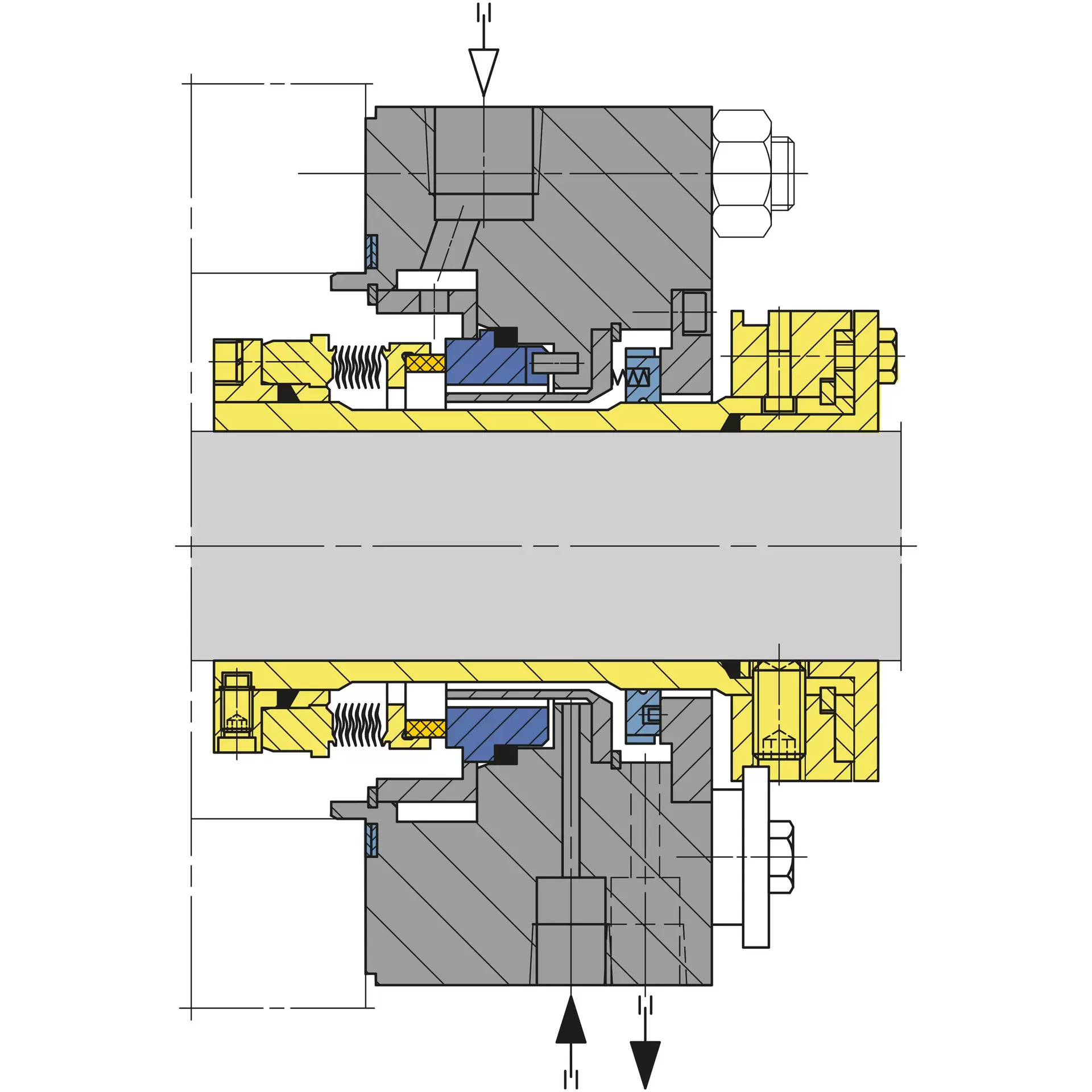

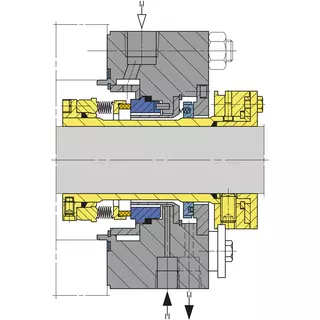

LY9TCR-S
Single seal
Arrangement: 1CW-FL
