BT-C8
Dimensions

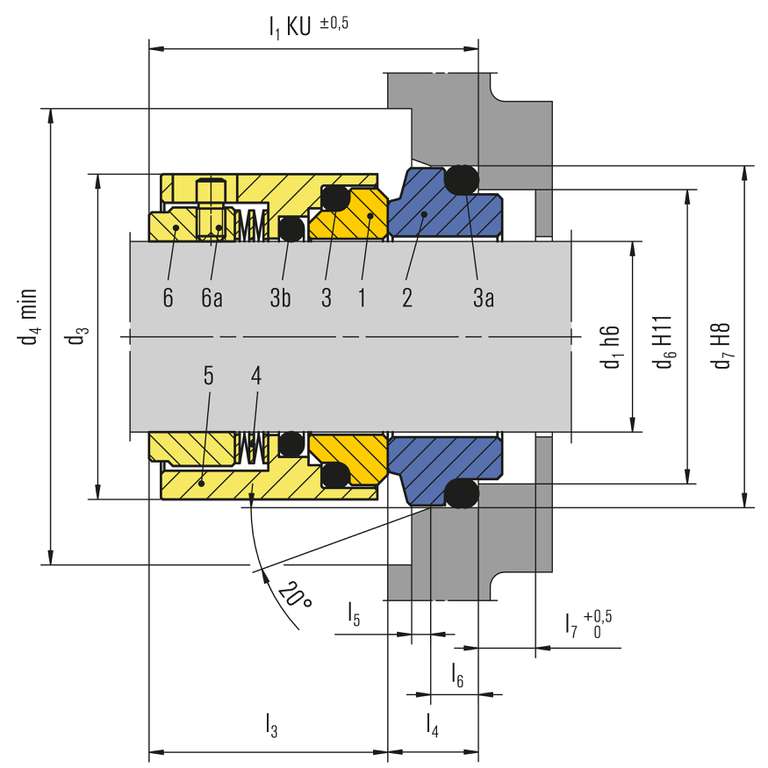

BT-C8 For a larger view, please mouseover the image.
d1 d3 d4 d6 d7 d8 l1KU l3 l4 l5 l6 l7
16 29 32 23 27 3 35.0 28.0 7 1.5 4 8.5
18 33 36 27 33 3 37.5 27.5 10 2.0 5 9.0
20 33 36 29 35 3 37.5 27.5 10 2.0 5 9.0
22 38 41 31 37 3 37.5 27.5 10 2.0 5 9.0
24 38 41 33 39 3 40.0 30.0 10 2.0 5 9.0
25 40 45 34 40 3 40.0 30.0 10 2.0 5 9.0
28 46 50 37 43 3 42.5 32.5 10 2.0 5 9.0
30 46 50 39 45 3 42.5 32.5 10 2.0 5 9.0
32 46 50 42 48 3 42.5 32.5 10 2.0 5 9.0
33 52 56 42 48 3 42.5 32.5 10 2.0 5 9.0
35 56 62 44 50 3 42.5 32.5 10 2.0 5 9.0
38 63 70 49 56 4 45.0 32.0 13 2.0 6 9.0
40 63 70 51 58 4 45.0 32.0 13 2.0 6 9.0
43 63 70 54 61 4 45.0 32.0 13 2.0 6 9.0
45 69 75 56 63 4 45.0 32.0 13 2.0 6 9.0
48 69 75 59 66 4 45.0 32.0 13 2.0 6 9.0
50 76 83 62 70 4 47.5 33.5 14 2.5 6 9.0
53 76 83 65 73 4 47.5 33.5 14 2.5 6 9.0
55 76 83 67 75 4 47.5 33.5 14 2.5 6 9.0
58 82 88 70 78 4 52.5 38.5 14 2.5 6 9.0
60 84 90 72 80 4 52.5 38.5 14 2.5 6 9.0
63 86 93 75 83 4 52.5 38.5 14 2.5 6 9.0
65 89 96 77 85 4 52.5 38.5 14 2.5 6 9.0
68 92 99 81 90 4 52.5 36.5 16 2.5 7 9.0
70 94 101 83 92 4 60.0 44.0 16 2.5 7 9.0
75 100 106 88 97 4 60.0 44.0 16 2.5 7 9.0
80 105 111 95 105 4 60.0 42.0 18 3.0 7 9.0
85 115 125 100 110 4 60.0 42.0 18 3.0 7 9.0
90 120 132 105 115 4 65.0 47.0 18 3.0 7 9.0
95 126 137 110 120 4 65.0 47.0 18 3.0 7 9.0
100 130 143 115 125 4 65.0 47.0 18 3.0 7 9.0

d3, d4 dimensions not always in accordance with EN 12756
l1KU complies with EN 12756 (short length, unbalanced)

BT-C8 - Dimensions in millimeter
