Burasil Basic 9544/B
Burasil Basic 9544/B
Burasil Basic 9544/B
Features

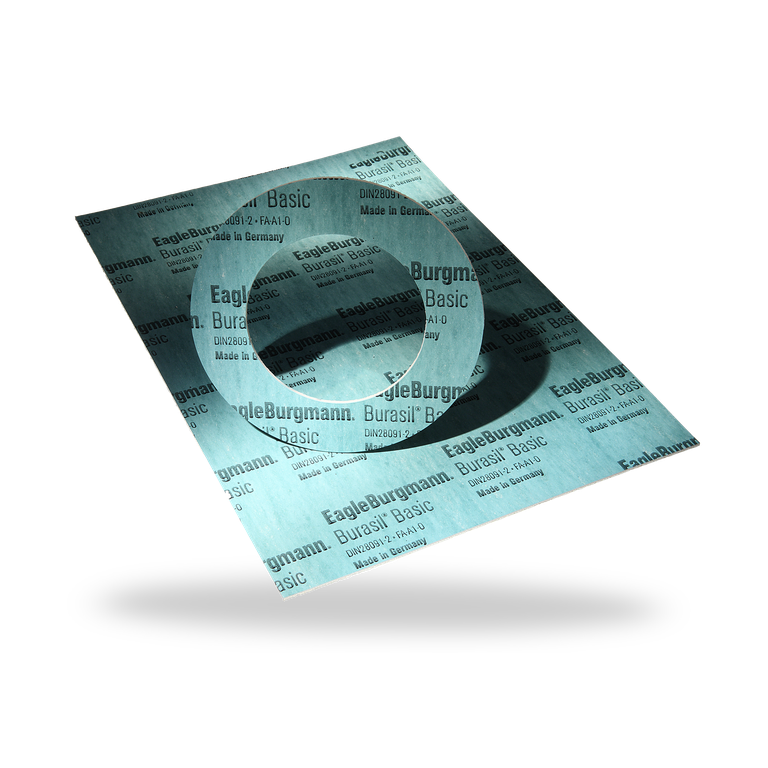

Burasil Basic 9544/B is a soft gasket made from high-quality aramid fibers, fillers and NBR rubber (nitrile butadiene rubber), with anti-stick coating on one side. Burasil Basic 9544/B is a standard gasket with a balanced mixture of raw materials for flange and flange-like connections in the medium pressure and temperature range.
Advantages
- Good media resistance
- Low gas leakage
- Good compressive strength
- Cost-effective sealing solution
Standards and approvals
- TA-Luft
- DVGW
- ELL
Recommended applications
Industries
- Process industry
- Pulp and paper industry
- Water and waste water technology
- Mining
- Building services engineering
- Shipbuilding
- Metal production and processing
Variants
9544/BP (sheets)
9544/BR (cut gasket)
9544/BTH (PTFE envelop gasket)
9544/BRG (eyeleted gasket)
9544/BS (segments)
9544/BR (cut gasket)
9544/BTH (PTFE envelop gasket)
9544/BRG (eyeleted gasket)
9544/BS (segments)
Forms of supply
- Sheets:
1.500 x 1.500 mm
in 0,3 / 0,5 / 1,0 / 1,5 / 2,0 / 3,0 / 4,0 / 5,0 mm Dicke - Rings and molded parts:
Standard dimensions as per DIN EN 1514-1 or ASME B16.21
Similar products
Burasil Universal 9544/U
The Burasil Universal 9544/U is a soft gasket made from highgrade aramid fibers and special functional fillers with NBR rubber (nitrile butadiene rubber). The surfaces of Burasil Universal 9544/U gaskets are coated with PTFE on both sides for ease of removal. The Burasil Universal 9544/U is a genuine all-rounder and is particularly suitable for use in sealed connections subject to high thermal and mechanical stresses.
Buratherm T 9544/T
Buratherm T 9544/T is a gasket sheet made from graphite and high-grade aramid fibers with a special anti-stick surface coating.
