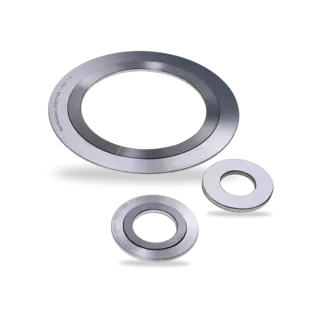

Camprofile serrated gasket 9588

Camprofile serrated gasket 9588

Camprofile serrated gasket 9588

Camprofile serrated gasket 9588

Features

The serrated gasket 9588 has a concentrically-machined profile based on a 4 mm thick stainless steel base plate. This is coated on both sides with a 0.5 mm thick layer of pure graphite (purity > 98%). Thicker layers are available on request. The serrated gasket 9588 is easy to handle and is particularly suitable for applications in the chemical and petrochemical industries and in power station technology.

Advantages

  • Maximum compressive strength
  • Low minimum surface pressure required
  • High temperature stability
  • Ideal for withstanding temperature/pressure cycling

Operating range

Pressure: p = 400 bar
Higher pressures available on request
Temperature
  • Continuous operation:
    t = -200 °C … +550 °C
Recommended surface roughness:
Rz = 12.5 ... 50 μm

Chemical resistance: pH = 0 … 14

Materials

  • Serrated ring: Standard 1.4541 and 1.4571
  • Gasket overlay: Statotherm pure graphite, purity > 98%

Standards and approvals

  • TA-Luft
  • Fire-Safe (API 607)

Variants

9598/P graphite layer (purity ≥ 99,85%) for nuclear applications
95.../P (without centring ring - Form NR)
95.../...Z (with centring ring - Form IR or LR)
95.../...B (convex form)
9598/SIL (silver sealing foil, 0.5 mm thick, for t < 700 °C)
9598/T (PTFE foil, 0.5 mm thick, for t < 250 °C)
9598/HT (serrated ring made of 1.4828 with glimmer layer for t < 950 °C)

Notes

After the initial warm-up, we recommend retightening the bolts (with the system depressurized) in order to compensate for any minor settling of the overlay material and thus maintain optimum surface pressure. If the gasket is replaced, the undamaged serrated profile ring can be reused.

Forms of supply

  • Standard dimensions as per DIN EN 1514-6, EN 12560-6 or ASME B16.20

Similar products

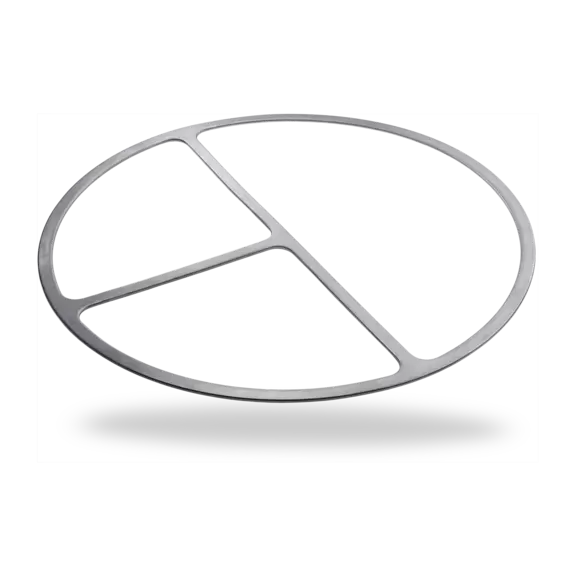

Buralloy Heat exchanger seal 2500

The Buralloy heat exchanger seal 2500 is a semi-metal gasket with a soft core and metal jacketing. The Buralloy 2500 thus combines the benefits of a compressible soft seal with the mechanical strength of a metal seal. As a result, it can be produced in many different material combinations and in different styles to suit the application.

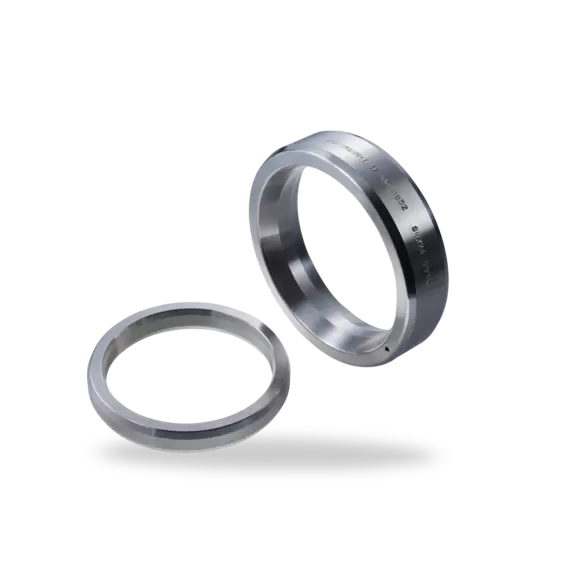

Buralloy Ring Type Joint 2961
