Buratex R 4002

Buratex R 4002

Buratex R 4002

Features

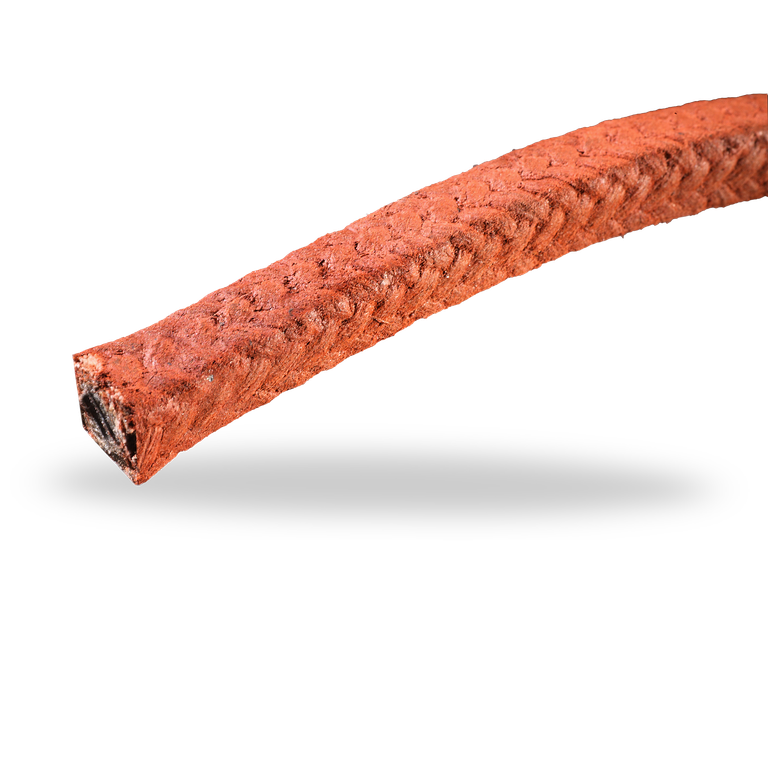

Buratex B 4002 is a flexible cotton packing impregnated with a special sea water-resistant impregnating agent, which makes it THE packing for marine applications. When it is manufactured, particularly tear-resistant cotton threads are pre-impregnated and twisted. At the next diagonal braiding step, the packing is further treated with a sea water-resistant and reddyed impregnating agent.

Advantages

  • Easy to handle
  • Special red impregnating agent is unmistakeable
  • Rot-resistant
  • Permanently soft and flexible

Operating range

Pumps
Pressure: p = 10 bar
Sliding velocity: vg = 10 m/s
Valves
Pressure: p = 60 bar
Sliding velocity: vg = 2 m/s
Mixers, agitators, kneaders, filters
Pressure: p = 8 bar
Sliding velocity: vg = 2 m/s

Temperature
  • Continuous operation:
    t = -20 °C … +100 °C

Chemical resistance:
pH = 6 ... 8
Resistant to water, waste water and sea water.

Notes

In pump applications, ideally fitted with a straight cut.

Forms of supply

  • Sold by length, blank cuts, precompressed rings with straight or slanted cut
  • Box contents
    up to 6,35 mm: 1 kg
    7 - 10 mm: 2 kg
    11 - 13 mm: 3 kg
    14 - 24 mm: 5 kg
    from 25 mm: 10 kg

Similar products

Araflon 6426

Araflon 6426 is a packing made from high quality, smooth, synthetic and partly pre-impregnated continuous aramid fibers (Kevlar) with multiple applications of PTFE impregnating agent and lubricant additive. The aramid fibers are diagonally braided. This is a high quality and high strength packing. It is used, in particular, in the chemical, petrochemical, waste water and paper industries.

Buraflex HT 2000/HT

Buraflex HT 2000/HT is a packing made from expanded graphite combined with Nomex yarn corners. The Buraflex HT is a special packing for applications with high temperatures and peripheral speeds.

Buraflon 5846

Buraflon 5846 is a diagonally braided, silicone oil-free ramie fiber packing with a light-colored special PTFE impregnating agent based on paraffin wax and oil. This special combination will prevent product contamination. The packing is preferred for use in marine applications, the brewing and drinks industry and the pharmaceutical industry. It is a flexible, maintenance-friendly and easy to adjust packing that is gentle on shaft surfaces.
